Product Description:
Tired of low efficiency, high breakage and rising labor cost from manual cone sleeving?

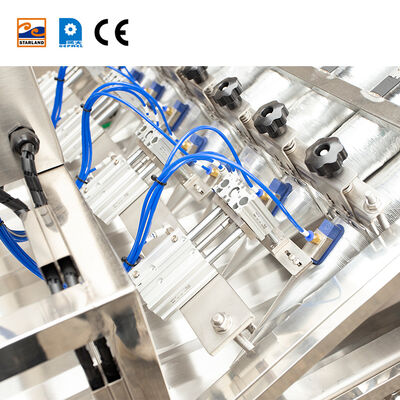

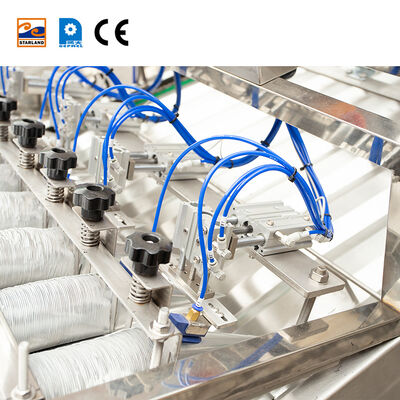

This patented automatic sleeving machine is fitted with SMC pneumatic parts. Infrared sensors deliver accurate sleeve release. Quick size adjustment supports various ice‑cream cone models.
Patent No.: ZL202022378407.1
Connect to your production line for full‑automatic sleeving, avoiding damage caused by manual handling. Robust mechanical construction suits long‑hour non‑stop factory operation, simple for setup and maintenance. Help food plants cut cost and boost efficiency for standardized automated cone production.
Features:
- Product Name: Automatic Cone Sleeving Device
- Material: High-quality Stainless Steel for durability and corrosion resistance
- Power Supply: Available in 220V and 380V options
- Product Type: Accessories specifically designed for cone production lines
- Name: Automatic Cone Sleeving Device for efficient cone sleeving
- Compatible with Industrial Automatic Cone Sleeving Device and Automatic Cone Sleeving Device
- After-Sales Service Provided: Includes Field Installation, Commissioning, and Training
FAQ:
Q1: What are the core driving and control systems of this automatic cone sleeving device?
A1: The device uses SMC pneumatic components as the core driving assembly, relying on the pneumatic system for power transmission. Meanwhile, it precisely controls the release action of the cone sleeve through an infrared sensor. Combined with the mechanical structure's size adjustment design, it achieves automated and high-precision sleeving operations.
Q2: What key functions does the infrared sensor perform in the device?
A2: The infrared sensor is mainly responsible for detecting the position/status of the cone sleeve. It triggers the "release" command through non-contact sensing to ensure the timing accuracy of the sleeving action (e.g., avoiding missed or incorrect placement). It also reduces mechanical wear and improves system stability and service life.
Q3: How is "adjustable to fit different cone sleeve sizes" achieved?
A3: The device achieves size compatibility through modular mechanical structure + parametric adjustment design:
- Key stations (such as clamping and conveying components) have adjustable interfaces (e.g., slide rails, knob-style limiters) reserved, supporting manual or automatic adjustment of physical spacing.
- The control logic of the pneumatic system and sensors can match the response thresholds of different sizes, thereby adapting to the production needs of multi-specification cone sleeves.
-
Q4: What innovations does the patent (ZL202022378407.1) for this device primarily protect?
A4: The patent focuses on the integrated technical solution of "pneumatic drive + infrared sensing + size adjustability", specifically protecting:
- The power transmission and action control logic based on SMC pneumatic components.
- The timing and detection mechanism for triggering sleeve release via infrared sensors.
- The mechanical adjustment structure and system linkage design compatible with multi-size sleeves.
These innovations address common challenges in traditional sleeving equipment, such as low precision, poor compatibility, and high manual intervention.
-
Q5: If issues arise during installation, debugging, or operation of the Automatic Cone Sleeving Device, how is after-sales support provided?
A5: We provide remote video technical support: Customers can connect via video conferencing platforms (e.g., Zoom, Microsoft Teams, etc.), where our technical engineers will demonstrate operations, troubleshoot faults, and guide debugging in real-time. This eliminates the wait for on-site service and quickly resolves questions regarding installation, programming, and maintenance, minimizing downtime.
Q6: What is the delivery lead time from order placement to receiving the device?
A6: The standard delivery lead time is 60 days (calculated from the effective date of the contract and receipt of the advance payment). We will synchronize progress throughout the production process. If there are special customization needs (such as oversized dimensions or special function integration), we will confirm the delivery schedule adjustment plan with the customer in advance to ensure delivery.
Q7: What stages are included in the 60-day delivery cycle? Will there be delays?
A7: The 60 days cover the entire process of design confirmation, material procurement, manufacturing, factory testing, and logistics shipping
