Efficient Barquillo Cone Making Machine With CE Rotary Operation

Efficient Barquillo Cone Making Machine With CE Rotary Operation

  • Efficient Barquillo Cone Making Machine With CE Rotary Operation
  • Efficient Barquillo Cone Making Machine With CE Rotary Operation
  • Efficient Barquillo Cone Making Machine With CE Rotary Operation
  • Efficient Barquillo Cone Making Machine With CE Rotary Operation
  • Efficient Barquillo Cone Making Machine With CE Rotary Operation
Efficient Barquillo Cone Making Machine With CE Rotary Operation
Product Details:
Place of Origin: Guangdong guangzhou
Brand Name: STARLAND
Certification: CE
Model Number: BC
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Containers
Delivery Time: 100days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Name: Efficient Barquillo Cone Making Machine Number Of Baking Plates:: 73
Standard Cone /hour**:: 7000 Gas Consumption(kg)/ Hour:: 11-12
Place Of Origin:: China Main Motor Specification:: 2.0hp;1.5KW
Material:: Stainless Steel After Warranty Service: Video Technical Support
After-sales Service Provided: Field Installation, Commissioning And Training Control System: PLC
Forming Method: Roller Forming
High Light:

Efficient Barquillo Cone Making Machine

,

Rotary Operation Barquillo Cone Making Machine

Efficient Barquillo Cone Making Machine with CE

Barquillo Cone Making Machine

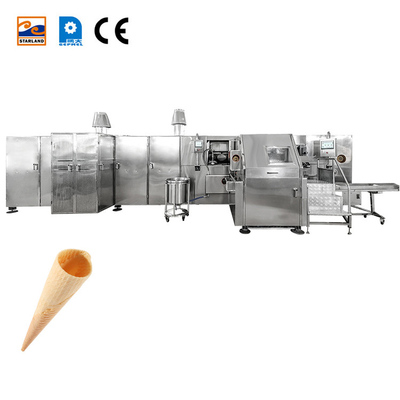

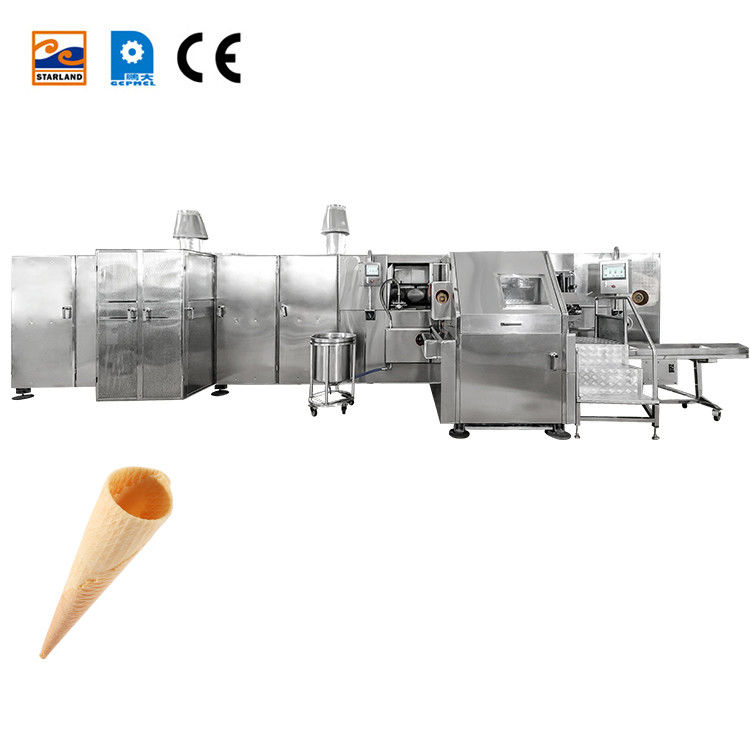

Introducing the Barquillo Cone Maker from GUANGZHOU CITY PENGDA MACHINERIES CO., LTD. This automatic production line is designed to produce 7000 cones per hour, making it perfect for high-volume baking operations.

Features:


  • Sturdy steel structure for durability

  • Double-layered doors for heat insulation

  • Continuous, automatic, and rotary operation

  • Adjustable speed with direct traction motor

  •

Competitive Points:


  • High productivity with frequency conversion speed control

  • Automatic device for consistent grouting and product handling

  • High-quality cast iron baking tray for perfect cone color

  • Easy operation with push-button or PLC controller

  • Enhanced safety with leakage detection and alarm system

  •

Barquillo Cone Making Machine Specifications

Applicable Industries Food & Beverage Factory, Other
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location None
Showroom Location None
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2021
Warranty of core components 1 Year
Core Components PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition New
Place of Origin China
Brand Name STARLAND
Model Number
Voltage 220V/380V
Weight 7000KG
Dimension(L*W*H) 12000L x 2400W x 1800H
Certification CE
Warranty 1 Year
Key Selling Points High Productivity
Number of Baking Plates: 73
Standard Cone /hour**: 7000
Place of Origin: China
Gas consumption(kg)/ hour: 11-12
name: Efficient Barquillo Cone Making Machine
Material: Stainless Steel
Main Motor Specification: 2.0hp;1.5KW





Efficient Barquillo Cone Making Machine With CE Rotary Operation 4

CONE EJECTION SYSTEM.
(UTILITY MODEL PATENT#: ZL200820043161.9,ZL 200820189568.2 ).
Easy to use and maintain. Flexible cone ejector device with springs allows cone diameter within

2mm difference to be ejected, no matter flat-top or natural rimmed cone.



Efficient Barquillo Cone Making Machine With CE Rotary Operation 5

STAR-REEL SYSTEM
(INVENTION PATENT#: 2015206924431)
Wafer takes shorter path from baking plates to rolling molds. Use of sugar and oil can be reduced



Efficient Barquillo Cone Making Machine With CE Rotary Operation 6

CONE LENGTH CONTROL DEVICES
Control the lengthdiametersize of sugar cone and perfect flat topped.





Efficient Barquillo Cone Making Machine With CE Rotary Operation 7

SYCHRONIZED ROTARY CONE
TRANSFERRING SYSTEM Same horizontal movement with therolling reel during cone

ejection to ensure perfect cone transfer.



Efficient Barquillo Cone Making Machine With CE Rotary Operation 8

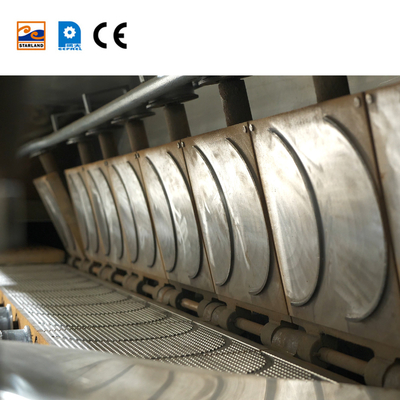

DURABLE BAKING PLATES.
Material is nodular cast iron.It is stable and durable. Still good in our factory after 10 years use. Plates
are designed and patented in a way to maximize heat absorption





Efficient Barquillo Cone Making Machine With CE Rotary Operation 9

HEART TO HEART’ ROTATION DEVICE
Place natural rimmed cone into the same position before packing





Efficient Barquillo Cone Making Machine With CE Rotary Operation 10Efficient Barquillo Cone Making Machine With CE Rotary Operation 11Efficient Barquillo Cone Making Machine With CE Rotary Operation 12Efficient Barquillo Cone Making Machine With CE Rotary Operation 13Efficient Barquillo Cone Making Machine With CE Rotary Operation 14Efficient Barquillo Cone Making Machine With CE Rotary Operation 15







Our Services

1. All the products have one year guarantee.

2. Providing professional installation instructions and video of troubleshoot.

3. We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.





FAQ

♦ What kind of ice cream cone your machine can make?

Our machine can make rolled ice cream cone,bowl shape cone,egg roll,and wafer biscuit cone.

♦ What’s the voltage of your machines?

380V,other voltage can be customized.

♦ 3.How can i get quotation?

Send your requirements(cone shape,size,angle,and picture)and leave your email,we will send you

quotation soon.

♦ Do you have automatic ice cream cone production line?

Yes,we have several models can be choose.

♦ Which kind of payment method you can accept?

T/T.Western Union,L/C.

Why should you buy from us and not from other suppliers?
With over 70 years of design and development experience. We don't sell either cones or machines.

We help you go from cone to solution.



After Sale Service

♥ Warranty policy one year from shipment

♥ We will send you the replacement after received the broken part

♥ Evaluate the customs rish and choose safest shipping company before shipping.

♥ Follow status up time by time until the goods arrived.
