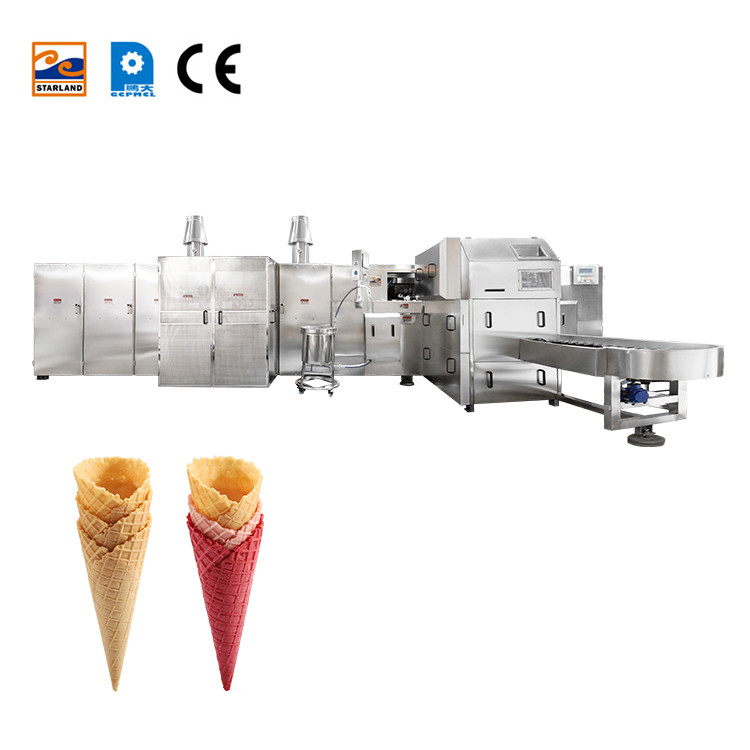

High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour

High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour

  • High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour
  • High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour
  • High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour
  • High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour
  • High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour
High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour
Product Details:
Place of Origin: Guangdong guangzhou
Brand Name: STARLAND
Certification: CE
Model Number: CBI-71*2A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Container
Delivery Time: 100days
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description
Name:: Ice Cream Cone Maker Number Of Baking Plates:: 71
Standard Cone /hour**:: 6200(23°,L108mm) Size: 9300L*2400W*1800H
Place Of Origin:: China Material:: Stainless Steel
Voltage: 220V/380V Main Motor Specification:: 2.0hp;1.5KW
After-Sales Service Provided: Field Installation, Commissioning And Training Productivity: High
Warranty: 1 Year Operation Mode: Automatic
Speed Adjustment: Adjustable
High Light:

High Stability Ice Cream Cone Maker

,

6200pcs / Hour Ice Cream Cone Maker

Ice Cream Cone Maker with Video Technical Support

Main Features:

6,200pcs/hour for standard cone.
Highly automated for manpower saving.
Mechanically synchorized with high stability and reliability.
Self-developed Automatic Temperature Control System started to implement in our machines.
Newly designed cone transferring system.
Production line layout can be designed according to customer's factory floor plan.


Experience the ultimate in precision and efficiency with our Cone Biscuit Making Machine. Crafted with the highest quality ductile cast iron baking plates, each measuring 240*240 mm, this machine is designed to create perfect cone plates. Whether you're making flat sugar cones or customizing the taper, weight, thickness, and pattern spacing, our machine can be tailored to meet your exact requirements.

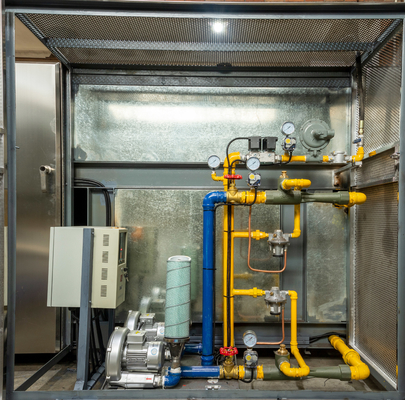

Driven by a reliable three-phase power supply, our machine features a gas-powered oven with electric ignition and an electronically displayed temperature control. From spraying batter to baking, molding, dislodging from molds, conveying products, stacking, and counting, every step of the process is fully automated, ensuring a high production capacity.

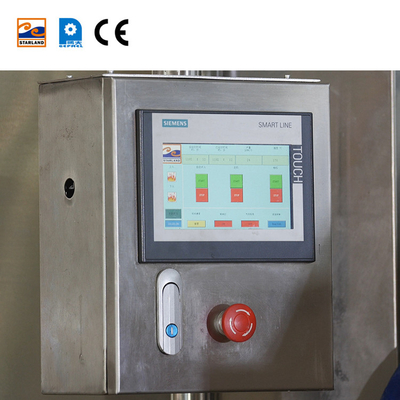

Our Tunnel type fully automatic cone production line is a PLC controlled cone machinery that guarantees exceptional automation, efficiency, and performance. With the ability to customize the size of sugar cone products, we can provide different sizes and models of machines to suit your specific needs.



Ice Cream Cone Maker Specifications



Applicable Industries Food & Beverage Factory, Food Shop, Other
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location None
Showroom Location None
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2021
Warranty of core components 1 Year
Core Components PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition New
Place of Origin China
Brand Name STARLAND
Voltage 220V/380V
Power 1.5kw
Certification CE
Year 2021
Warranty 1 Year
Key Selling Points Automatic
Place of Origin: China
name: Ice Cream Cone Maker
Material: stainless steel









High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour 4

CONE EJECTION SYSTEM.
(UTILITY MODEL PATENT#: ZL200820043161.9,ZL 200820189568.2 ).
Easy to use and maintain. Flexible cone ejector device with springs allows cone diameter within

2mm difference to be ejected, no matter flat-top or natural rimmed cone.



High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour 5

DURABLE BAKING PLATES.
Material is nodular cast iron.It is stable and durable. Still good in our factory after 10 years use. Plates
are designed and patented in a way to maximize heat absorption



High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour 6

CONE LENGTH CONTROL DEVICES
Control the lengthdiametersize of sugar cone and perfect flat topped.





High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour 7

HEART TO HEART’ ROTATION DEVICE
Place natural rimmed cone into the same position before packing



High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour 8

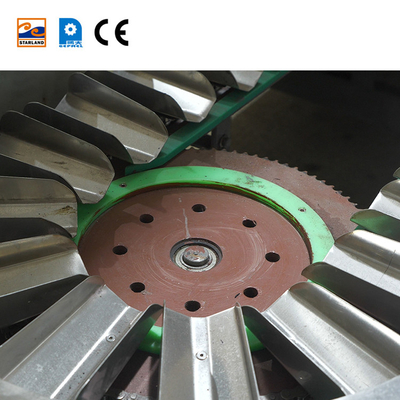

SYCHRONIZED ROTARY CONE TRANSFERRING SYSTEM
Same horizontal movement with the rolling reel during cone ejection to ensure perfect cone transfer.



High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour 9High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour 10

In1950,founderMr.Ho ShuTongmoved from China to Macau. To make a living for his family in
thisnewplacehelearned handmade cones from a street stall. Hand-making cones earned
enough for the family to moveto Hong Kong. Ho and his wife, madam Lai Yuk Mei rented a shop
in KowloonHoHauIce-creamsConeCo.Ltd was officially registered when spaces in industrial
buildingwerepurchasedin1973.Ho Hau became the only cone baker for Hong Kong market
lateron.They built a sold foundation for the company's future development.


The second generation succeeded the business in the 80's. Their new thinking, vision and market
opportunities broughtHo Hau cone business into a new horizon. Automation was introduced in
productiontoincrease efficiencyandquality. As Mainland China continued its economic reform,
Guangzhou StarlandFoodCo.Ltd was set up in the 90's with selfowned land to explore and
develop thisfast-growingmarket.Starland developed its first automatic cone baking machine in

the late 90's with knowledge accumulated over the decades and various professionals available in
China.Auhui StarlandFoods Machinery Co.Ltd was established in 2005 for the abundant natural
and human resources and be ready to serve the inland market.



For more than half a century, the family members dedicated themselves to do everything about
ice-cream cones.From conesto machines to solution, we are still working on it day in day out
WithconeproductionusingourStarland machines, we are trying to improve recipe, management
system and machine design every day There is only one purpose: to make nice, strong and
hygienic cone efficiently and reliably for consumers.



High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour 11High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour 12

High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour 13High Stability Ice Cream Cone Maker With Video Technical Support 6200pcs / Hour 14



Our Services
1. All the products have one year guarantee.
2. Providing professional installation instructions and video of troubleshoot.
3. We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.


FAQ
♦ What kind of ice cream cone your machine can make?
Our machine can make rolled ice cream cone,bowl shape cone,egg roll,and wafer biscuit cone.
♦ What's the voltage of your machines?
380V,other voltage can be customized.
♦ 3.How can i get quotation?
Send your requirements(cone shape,size,angle,and picture)and leave your email,we will send you
quotation soon.
♦ Do you have automatic ice cream cone production line?
Yes,we have several models can be choose.
♦ Which kind of payment method you can accept?
T/T.Western Union,L/C.
Why should you buy from us and not from other suppliers?
With over 70 years of design and development experience. We don't sell either cones or machines.
We help you go from cone to solution.

After Sale Service
♥ Warranty policy one year from shipment
♥ We will send you the replacement after received the broken part
♥ Evaluate the customs rish and choose safest shipping company before shipping.
♥ Follow status up time by time until the goods arrived.
