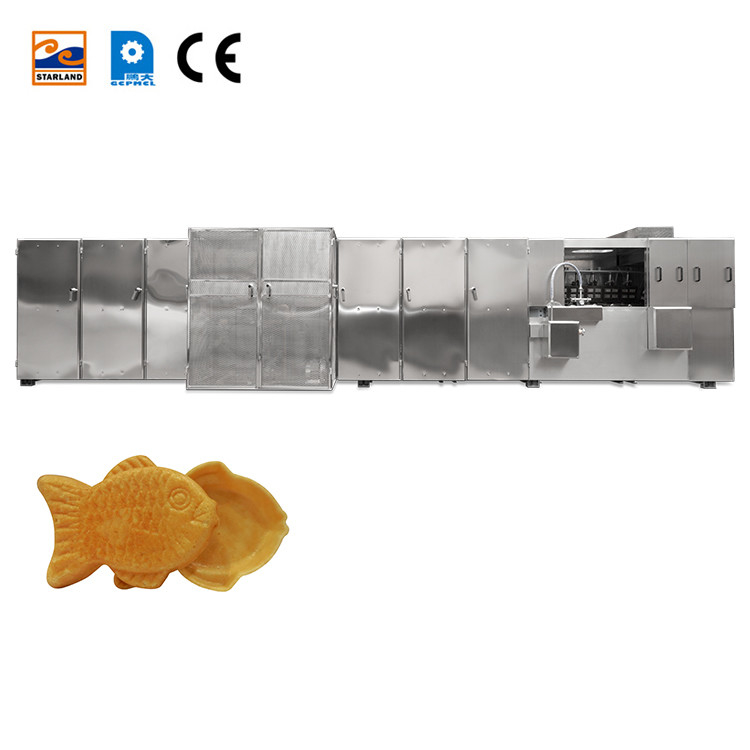

Automatic Multi Function Monaka Wafer Machine 89 Baking Plates

Professional Factory Production Stainless Steel Automatic Multi-Function Monaka Wafer Machine

Competitive points of monaka wafer machine

1. High productivity. Using frequency conversion speed control

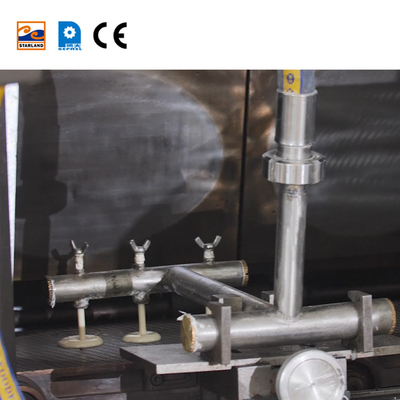

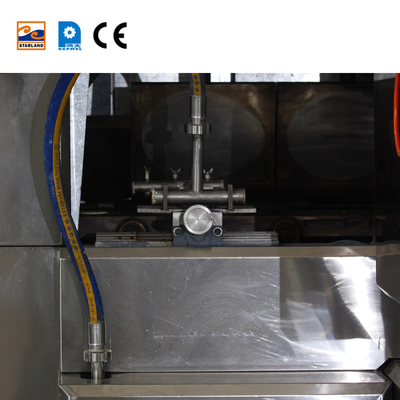

2. Automatic device. Constant quantitative grouting, automatic opening, gripping the egg tube, rolling the finished product
3. Good colour of sugar cone. Baking tray is made of high quality cast iron
4. Easy to use: the operation panel can be set up by choosing simple button operation or PLC controller.
5. High safety. The production line equipment is equipped with leakage detection and alarm system


Features of monaka wafer machine
The machine is driven by three-phase power supply, the back oven is heated by gas (natural gas or liquefied petroleum gas), electric ignition, and the temperature of the oven is displayed electronically. The production capacity is very strong, from slurry spraying, baking, moulding, demoulding, conveying products, stacking and counting are all automated.

Fully automatic filling of paste, baking, rolling, conveying - cooling - counting. The same machine can produce different products such as round cakes, sugar rolls, egg rolls, etc. by changing different forming devices.

High productivity. Using frequency conversion speed control Automatic device. Constant quantitative grouting, automatic opening, grabbing egg tube, rolling finished product Good color of sugar cone. Baking pan is made of high quality cast iron Easy to use: The operation panel can be set up by choosing simple button operation or PLC controller. High safety. The production line equipment is equipped with leakage detection and alarm system.


monaka wafer machine Specifications

Applicable Industries	Food & Beverage Factory, Other
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location	None
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2021
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition	New
Place of Origin	China
Brand Name	STARLAND
Model Number
Voltage	220V/380V
Weight	8500KG
Dimension(L*W*H)	14600L x 2400W x 1800H
Certification	CE
Warranty	1 Year
Key Selling Points	High Productivity
Number of Baking Plates:	89
Standard Cone /hour**:	8500
Place of Origin:	China
Gas consumption(kg)/ hour:	13-14
name:	monoka biscuit machine
Material:	Stainless Steel
Main Motor Specification:	2.0hp;1.5KW

Our Services

1. All the products have one year guarantee.

2. Providing professional installation instructions and video of troubleshoot.

3. We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.

FAQ

♦ What kind of ice cream cone your machine can make?

Our machine can make rolled ice cream cone,bowl shape cone,egg roll,and wafer biscuit cone.

♦ What’s the voltage of your machines?

380V,other voltage can be customized.

♦ 3.How can i get quotation?

Send your requirements(cone shape,size,angle,and picture)and leave your email,we will send you

quotation soon.

♦ Do you have automatic ice cream cone production line?

Yes,we have several models can be choose.

♦ Which kind of payment method you can accept?

T/T.Western Union,L/C.

♦Why should you buy from us and not from other suppliers?
With over 70 years of design and development experience. We don't sell either cones or machines.

We help you go from cone to solution.

After Sale Service

♥ Warranty policy one year from shipment

♥ We will send you the replacement after received the broken part

♥ Evaluate the customs rish and choose safest shipping company before shipping.

♥ Follow status up time by time until the goods arrived.

CONE EJECTION SYSTEM.
(UTILITY MODEL PATENT#: ZL200820043161.9,ZL 200820189568.2 ).
Easy to use and maintain. Flexible cone ejector device with springs allows cone diameter within

2mm difference to be ejected, no matter flat-top or natural rimmed cone.

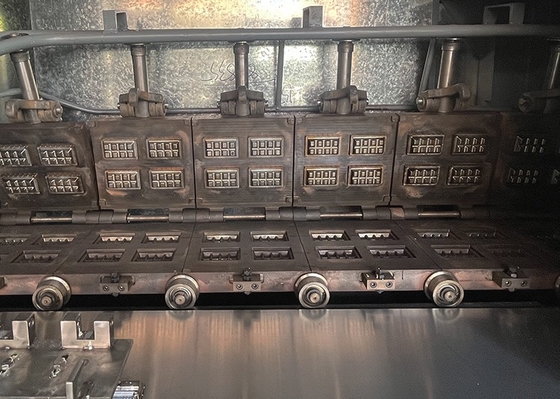

DURABLE BAKING PLATES.
Material is nodular cast iron.It is stable and durable. Still good in our factory after 10 years use. Plates
are designed and patented in a way to maximize heat absorption

HEART TO HEART’ ROTATION DEVICE
Place natural rimmed cone into the same position before packing

CONE LENGTH CONTROL DEVICES
Control the lengthdiametersize of sugar cone and perfect flat topped.

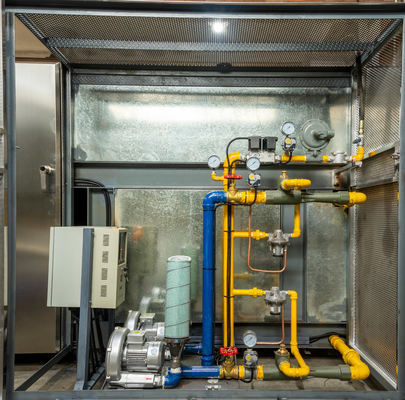

GAS SYSTEM
improted gas system parts, various choice, the touch screen panel can control the fire

volume directly.
