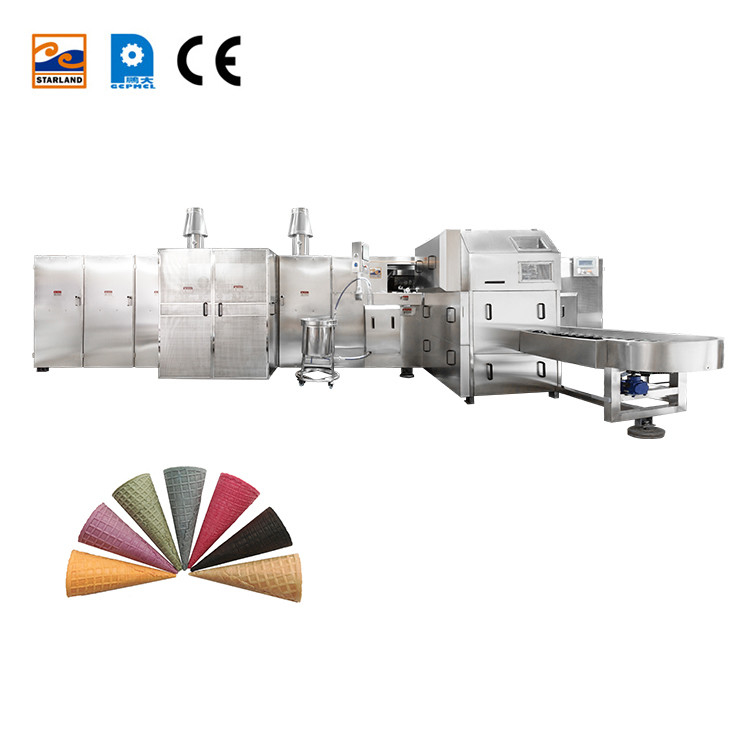

107 Plates Ice Cream Cone Baking Machine Stainless Steel Cone Maker

107 Baking Plates Stainless Steel Cone Maker Ice Cream Cone Baking Machine Wirh One Year Warranty



Features of cone baking machine


10,000pcs/hour for standard cone. Highly automated for manpowers saving. Mechanically synchorized with high stability and reliability. Self-developed Automatic Temperature Control System started to implement in our machines. Newly designed cone transferring system. Production line layout can be designed according to customer's factory floor plan.

High productivity. Using frequency conversion speed control
Automatic device. Constant quantitative grouting, automatic opening, gripping the egg tube, rolling the finished product
Good color of sugar cone. Baking pan is made of high quality cast iron

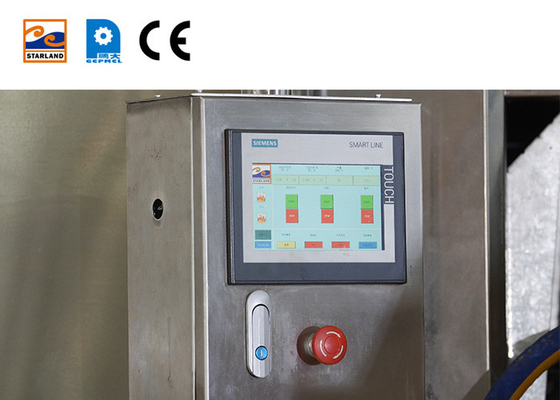

Easy to use: The operation panel can be set up by choosing simple push-button operation or PLC controller.
High safety. The production line equipment is equipped with leakage detection and alarm system

This machine is suitable for making flat mouth candy cone with length less than 190mm. The taper, weight, thickness and pattern spacing can be customized according to customers' requirements.
The machine consists of 240*240mm baking plate, the material of baking plate is high quality ductile cast iron, each baking plate can make two cone plates.

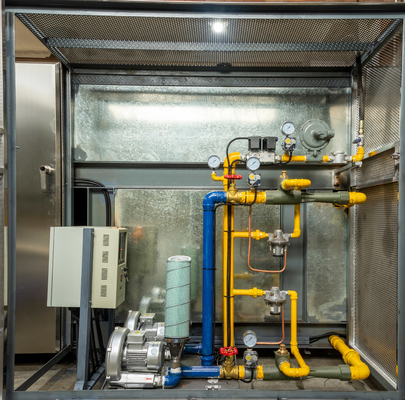

The machine is driven by three-phase power supply, the back oven is heated by gas (natural gas or liquefied petroleum gas), electric ignition, and the temperature of the oven is displayed electronically. The production capacity is very strong, from slurry spraying, baking, molding, demolding, conveying products, stacking and counting are all automated.

cone baking machine Specifications

Applicable Industries	Food & Beverage Factory, Other
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location	None
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2021
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition	New
Place of Origin	China
Brand Name	STARLAND
Model Number	CBI-107*2A
Voltage	220V/380V
Weight	8000KG
Dimension(L*W*H)	13600L x 2400W x 1800H
Certification	CE
Warranty	1 Year
Key Selling Points	High Productivity
Number of Baking Plates:	107
Standard Cone /hour**:	10000(23°,L108mm)
Place of Origin:	China
Gas consumption(kg)/ hour:	13-14
name:	cone baking machine
Material:	Stainless Steel
Main Motor Specification:	2.0hp;1.5KW

CONE EJECTION SYSTEM.
(UTILITY MODEL PATENT#: ZL200820043161.9,ZL 200820189568.2 ).
Easy to use and maintain. Flexible cone ejector device with springs allows cone diameter within

2mm difference to be ejected, no matter flat-top or natural rimmed cone.

DURABLE BAKING PLATES.
Material is nodular cast iron.It is stable and durable. Still good in our factory after 10 years use. Plates
are designed and patented in a way to maximize heat absorption

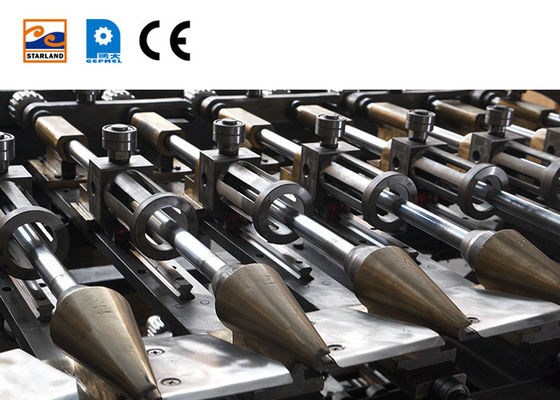

CONE LENGTH CONTROL DEVICES
Control the lengthdiametersize of sugar cone and perfect flat topped.

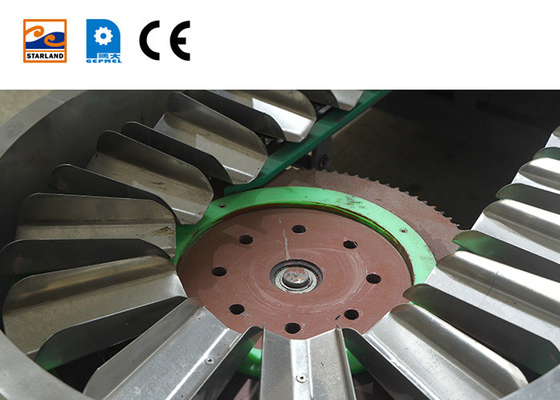

HEART TO HEART’ ROTATION DEVICE
Place natural rimmed cone into the same position before packing

SYCHRONIZED ROTARY CONE TRANSFERRING SYSTEM
Same horizontal movement with the rolling reel during cone ejection to ensure perfect cone transfer.

In1950,founderMr.Ho ShuTongmoved from China to Macau. To make a living for his family in
thisnewplacehelearned handmade cones from a street stall. Hand-making cones earned
enough for the family to moveto Hong Kong. Ho and his wife, madam Lai Yuk Mei rented a shop
in KowloonHoHauIce-creamsConeCo.Ltd was officially registered when spaces in industrial
buildingwerepurchasedin1973.Ho Hau became the only cone baker for Hong Kong market
lateron.They built a sold foundation for the company's future development.

The second generation succeeded the business in the 80's. Their new thinking, vision and market
opportunities broughtHo Hau cone business into a new horizon. Automation was introduced in
productiontoincrease efficiencyandquality. As Mainland China continued its economic reform,
Guangzhou StarlandFoodCo.Ltd was set up in the 90's with selfowned land to explore and
develop thisfast-growingmarket.Starland developed its first automatic cone baking machine in

the late 90's with knowledge accumulated over the decades and various professionals available in
China.Auhui StarlandFoods Machinery Co.Ltd was established in 2005 for the abundant natural
and human resources and be ready to serve the inland market.

For more than half a century, the family members dedicated themselves to do everything about
ice-cream cones.From conesto machines to solution, we are still working on it day in day out
WithconeproductionusingourStarland machines, we are trying to improve recipe, management
system and machine design every day There is only one purpose: to make nice, strong and
hygienic cone efficiently and reliably for consumers.

Our Services
1. All the products have one year guarantee.
2. Providing professional installation instructions and video of troubleshoot.
3. We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.


FAQ
♦ What kind of ice cream cone your machine can make?
Our machine can make rolled ice cream cone,bowl shape cone,egg roll,and wafer biscuit cone.
♦ What's the voltage of your machines?
380V,other voltage can be customized.
♦ 3.How can i get quotation?
Send your requirements(cone shape,size,angle,and picture)and leave your email,we will send you
quotation soon.
♦ Do you have automatic ice cream cone production line?
Yes,we have several models can be choose.
♦ Which kind of payment method you can accept?
T/T.Western Union,L/C.
♦Why should you buy from us and not from other suppliers?
With over 70 years of design and development experience. We don't sell either cones or machines.
We help you go from cone to solution.

After Sale Service
♥ Warranty policy one year from shipment
♥ We will send you the replacement after received the broken part
♥ Evaluate the customs rish and choose safest shipping company before shipping.
♥ Follow status up time by time until the goods arrived.
