14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine

14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine

  • 14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine
  • 14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine
  • 14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine
  • 14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine
  • 14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine
14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine
Product Details:
Place of Origin: Guangdong guangzhou
Brand Name: STARLAND
Certification: CE
Model Number: CBII-137*2A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Container
Delivery Time: 100days
Payment Terms: T/T
Contact Now
Detailed Product Description
Name: Food Maker Machine Number Of Baking Plates:: 137
Standard Cone /hour**:: 5200(23°,L170mm) Gas Consumption(kg)/ Hour:: 13-14
Place Of Origin:: China Main Motor Specification:: 2.0hp ; 1.5kw
Material:: Stainless Steel After Warranty Service: Video Technical Support
Warranty: 1 Year Weight: 6500kg
Condition: New Type: Automatic
Local SerAfter-sales Service Providedvice Location: None After-sales Service Provided: Field Installation, Commissioning And Training
High Light:

14kg / Hour Sugar Cone Production Line

,

Commercial Sugar Cone Production Line

Commercial Industrial , Factory Direct Sales , Food Maker Machine .



Competitive Points of Food Maker Machine



1.High Productivity: Using Frequency conversion speed control

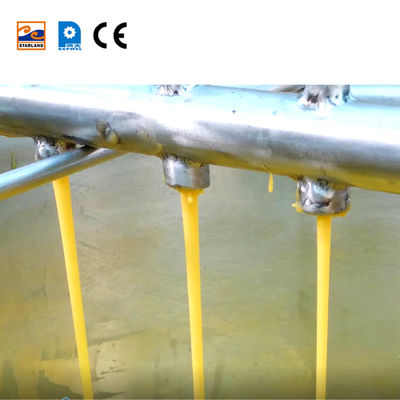

2.Automation Device: Constant quantitative grouting, automatic opening, grabbing the egg tube,

and rolling the finished product
3.Good Color of Sugar Cone: The baking pan is made of high-quality cast iron
4.Easy to Use: The operation panel can choose easy button operation or PLC controller for setting
5.High Security: The production line equipment is equipped with a leak detection and alarm system.





Features of Food Maker Machine



1.The machine is suitable for making flat mouth sugar cone length less than 180mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.

2.The machine is consist of 200*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.

3.The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.







Food Maker Machine Specifications





Applicable Industries Food & Beverage Factory, Other
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location None
Showroom Location None
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2021
Warranty of core components 1 Year
Core Components PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition New
Place of Origin China
Brand Name STARLAND
Model Number CBII-137*2A
Voltage 220V/380V
Weight 6500KG
Dimension(L*W*H) 14600L x 2400W x 1800H
Certification CE
Warranty 1 Year
Key Selling Points High Productivity
Number of Baking Plates: 137
Standard Cone /hour**: 5200(23°,L170mm)
Place of Origin: China
Gas consumption(kg)/ hour: 13-14
name: Food Maker Machine
Material: Stainless Steel
Main Motor Specification: 2.0hp;1.5KW





Our Services

1. All the products have one year guarantee.

2. Providing professional installation instructions and video of troubleshoot.

3. We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.





FAQ

♦ What kind of ice cream cone your machine can make?

Our machine can make rolled ice cream cone,bowl shape cone,egg roll,and wafer biscuit cone.

♦ What’s the voltage of your machines?

380V,other voltage can be customized.

♦ 3.How can i get quotation?

Send your requirements(cone shape,size,angle,and picture)and leave your email,we will send you

quotation soon.

♦ Do you have automatic ice cream cone production line?

Yes,we have several models can be choose.

♦ Which kind of payment method you can accept?

T/T.Western Union,L/C.

After Sale Service

♥ Warranty policy one year from shipment

♥ We will send you the replacement after received the broken part

♥ Evaluate the customs rish and choose safest shipping company before shipping.

♥ Follow status up time by time until the goods arrived.





14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine 0

CONE EJECTION SYSTEM.
(UTILITY MODEL PATENT#: ZL200820043161.9,ZL 200820189568.2 ).
Easy to use and maintain. Flexible cone ejector device with springs allows cone diameter within

2mm difference to be ejected, no matter flat-top or natural rimmed cone.



14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine 1



stareel system

wafer takes shorter path from baking plates to rolling molds.use of sugar and oil can be reduced.



14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine 2

CONE LENGTH CONTROL DEVICES
Control the length,diameter,size of sugar cone and perfect flat topped.





14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine 3

SYCHRONIZED ROTARY CONE TRANSFERRING SYSTEM
Same horizontal movement with the rolling reel during cone ejection to ensure perfect
cone transfer.





14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine 4

'HEARTTO HEA RT' ROTATION DEVICE
Place natural rimmed cone into the same position before packing.





14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine 5



DURABLE BAKING PLATES.
(UTILITY MODEL PATENT#: ZL200920008201.0).
Material is nodular cast iron. It is stable and durable. Still good in our factory after 10 years use.

Plates are designed and patented in a way to maximize heat absorption.





14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine 6

Gas system.

Imported Gas System parts, various choice, the touch screen panel can control the fire

volume directly.





14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine 7

14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine 8

In1950,founderMr.Ho ShuTongmoved from China to Macau. To make a living for his family in
thisnewplacehelearned handmade cones from a street stall. Hand-making cones earned
enough for the family to moveto Hong Kong. Ho and his wife, madam Lai Yuk Mei rented a shop
in KowloonHoHauIce-creamsConeCo.Ltd was officially registered when spaces in industrial
buildingwerepurchasedin1973.Ho Hau became the only cone baker for Hong Kong market
lateron.They built a sold foundation for the company's future development.


The second generation succeeded the business in the 80's. Their new thinking, vision and market
opportunities broughtHo Hau cone business into a new horizon. Automation was introduced in
productiontoincrease efficiencyandquality. As Mainland China continued its economic reform,
Guangzhou StarlandFoodCo.Ltd was set up in the 90's with selfowned land to explore and
develop thisfast-growingmarket.Starland developed its first automatic cone baking machine in

the late 90's with knowledge accumulated over the decades and various professionals available in
China.Auhui StarlandFoods Machinery Co.Ltd was established in 2005 for the abundant natural
and human resources and be ready to serve the inland market.



For more than half a century, the family members dedicated themselves to do everything about
ice-cream cones.From conesto machines to solution, we are still working on it day in day out
WithconeproductionusingourStarland machines, we are trying to improve recipe, management
system and machine design every day There is only one purpose: to make nice, strong and
hygienic cone efficiently and reliably for consumers.





14kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine 914kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine 1014kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine 1114kg / Hour Sugar Cone Production Line Commercial Industrial Food Maker Machine 12
