-PROFESSIONAL PRODUCTION OF ICE CREAM CONE EQUIPMENT-
 |
| Place of Origin: | Guangdong guangzhou |
| Brand Name: | STARLAND |
| Certification: | CE |
| Model Number: | CBI-47A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | Container |
| Delivery Time: | 100days |
| Payment Terms: | T/T |
| Name: | Automatic Ice Cream Cone Making Machine | Number Of Baking Plates:: | 47 |
|---|---|---|---|
| Standard Cone /hour**:: | 4200(23°,L108mm) | Gas Consumption(kg)/ Hour:: | 6-7 |
| Place Of Origin:: | China | Main Motor Specification:: | 1.5hp;1.1KW |
| Material:: | Stainless Steel | After Warranty Service: | Video Technical Support |
| Local SerAfter-sales Service Providedvice Location: | None | After-sales Service Provided: | Field Installation, Commissioning And Training |
| High Light: | Waffle Ice Cream Cone Making Machine,1.1KW Ice Cream Cone Making Machine,47 Plates Sugar Cone Production Line |
||
Automatic Ice Cream Cone Making Machine , Waffle
Biscuit Machine With Factory Price.

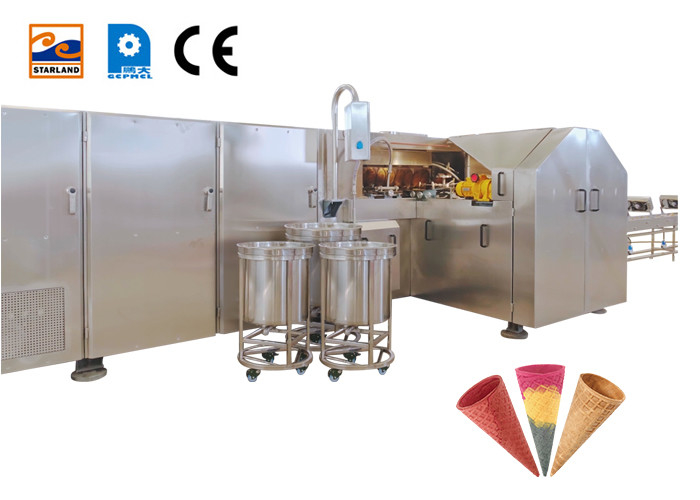

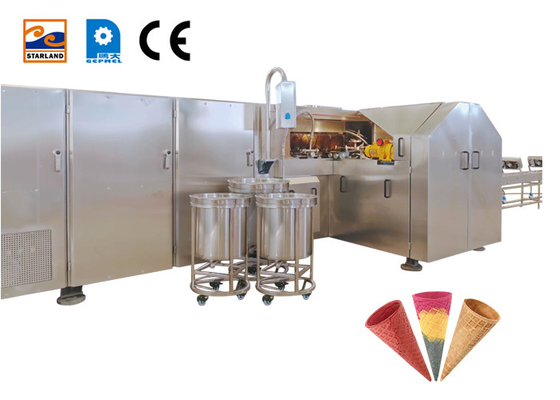

Automatic Ice Cream Cone Making Machine
Durable baking template
The material is cast iron, abrasion resistant, practical, and formwork design
maximizes heat absorption.
Gas fired system
Automatic ignition, specially designed burner for greater energy utilization,
universal gas system: LPG, natural gas and other types of fuel can be used.
| Applicable Industries | Food & Beverage Factory, Other |
| After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location | None |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2021 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Condition | New |
| Place of Origin | China |
| Brand Name | STARLAND |
| Model Number | CBI-47A |
| Voltage | 220V/380V |
| Weight | 5500KG |
| Dimension(L*W*H) | 6400L x 2400W x 1800H |
| Certification | CE |
| Warranty | 1 Year |
| Key Selling Points | High Productivity |
| Number of Baking Plates: | 47 |
| Standard Cone /hour**: | 4200(23°,L108mm) |
| Place of Origin: | China |
| Gas consumption(kg)/ hour: | 6-7 |
| name: | Automatic Ice Cream Cone Making Machine |
| Material: | Stainless Steel |
| Main Motor Specification: | 2.0hp ; 1.5kw |
Cone Ejection System.
Easy to use and maintain. Flexible cone ejector device with springs allows cone
diameter within 2mm difference to be ejected, no matter flat-top or natural rimmed
cone.
Star-Reel system
Wafer takes shorter path from baking plates to rolling molds. Use of sugar and oil can
be reduced.
Cone length control devices
Control the length,diameter,size of sugar cone and perfect flat topped.

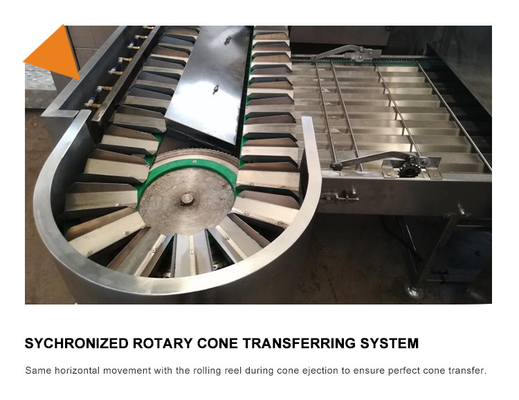

Sychronized Rotary Cone Transferring System
Same horizontal movement with the rolling reel during cone ejection to ensure perfect
cone transfer.

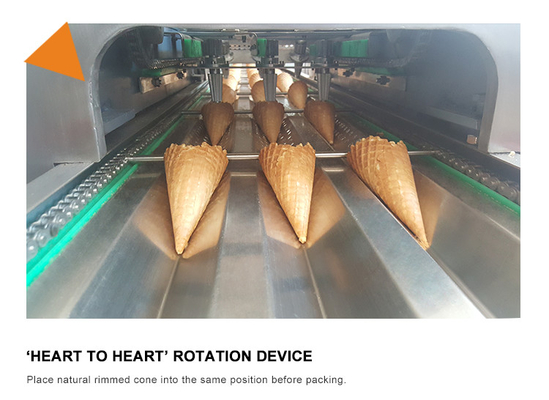

‘Heart to heart’ rotation device
Place natural rimmed cone into the same position before packing.

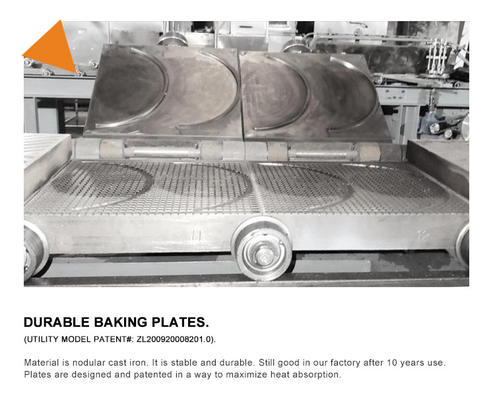

Durable Baking Plates.
Material is nodular cast iron. It is stable and durable. Still good in our factory after
10 years use. Plates are designed and patented in a way to maximize heat absorption.

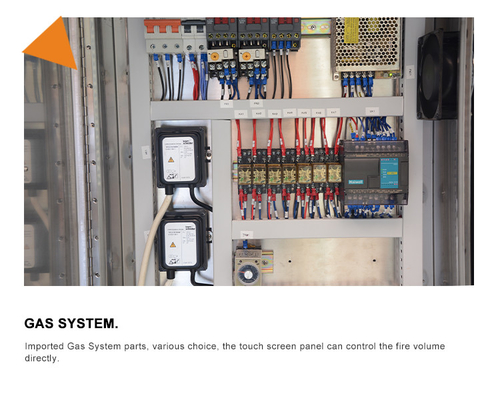

Gas system.
Imported Gas System parts, various choice, the touch screen panel can control the
fire volume directly.
What kind of ice cream cone your machine can make?
Our machine can make rolled ice cream cone,bowl shape cone,egg roll,and wafer
biscuit cone.
What’s the voltage of your machines?
380V,other voltage can be customized.
How can i get quotation?
Send your requirements(cone shape,size,angle,and picture)and leave your email,we
will send you quotation soon.
Do you have automatic ice cream cone production line?
Yes,we have several models can be choose.
Which kind of payment method you can accept?
T/T.Western Union,L/C.
After Sale Service
*Warranty policy one year from shipment
*We will send you the replacement after received the broken part
*Evaluate the customs rish and choose safest shipping company before shipping.
*Follow status up time by time until the goods arrived.
