-PROFESSIONAL PRODUCTION OF ICE CREAM CONE EQUIPMENT-

Home ProductsSugar Cone Production Line

Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine

Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine

Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine
Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine
Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine
Product Details:
Place of Origin: Guangdong guangzhou
Brand Name: STARLAND
Certification: CE
Model Number: CBII-51A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Container
Delivery Time: 100days
Payment Terms: T/T
Contact Now
Detailed Product Description
Name: Top Quality Rolled Sugar Cone Baking Machine Number Of Baking Plates:: 51
Standard Cone /hour**:: 1800(23°,L170mm) Gas Consumption(kg)/ Hour:: 4-5
Place Of Origin:: China Main Motor Specification:: 1.5hp;1.1KW
Material:: Stainless Steel After Warranty Service: Video Technical Support
Local Service Location: None After-sales Service Provided: Field Installation, Commissioning And Training
High Light:

Rolled Sugar Cone Production Line

,

Cookies Sugar Cone Production Line

,

Cookies Crispy Cone Making Machine

Top Quality Rolled Sugar Cone Baking Machine , Cookies

Cone , Crispy Cone Making Machine.



Top Quality Rolled Sugar Cone Baking Machine



automatic rolled sugar cone production line , Can produce all kinds of sugar cones

and jumbo cones.







Applicable Industries Food & Beverage Factory, Other
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location None
Showroom Location None
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2021
Warranty of core components 1 Year
Core Components PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition New
Place of Origin China
Brand Name STARLAND
Model Number CBII-51A
Voltage 220V/380V
Weight 4500KG
Dimension(L*W*H) 6000L x 2400W x 1800H
Certification CE
Warranty 1 Year
Key Selling Points High Productivity
Number of Baking Plates: 51
Standard Cone /hour**: 1800(23°,L170mm)
Place of Origin: China
Gas consumption(kg)/ hour: 4-5
name: Top Quality Rolled Sugar Cone Baking Machine
Material: Stainless Steel
Main Motor Specification: 1.5hp ; 1.1kw







Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 0Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 1

CONE EJECTION SYSTEM.
(UTILITY MODEL PATENT#: ZL200820043161.9,ZL 200820189568.2 ).
Easy to use and maintain. Flexible cone ejector device with springs allows cone diameter within

2mm difference to be ejected, no matter flat-top or natural rimmed cone.







Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 2



STAR-REEL SYSTE M
(INVENTION PATENT#: 2015206924431).
Wafer takes shorter path from baking plates to rolling molds. Use of sugar and oil can be reduced.





Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 3



CONE LENGTH CONTROL DEVICES
Control the length,diameter,size of sugar cone and perfect flat topped.





Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 4





SYCHRONIZED ROTARY CONE TRANSFERRING SYSTEM
Same horizontal movement with the rolling reel during cone ejection to ensure perfect
cone transfer.





Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 5





'HEARTTO HEA RT' ROTATION DEVICE
Place natural rimmed cone into the same position before packing.





Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 6







DURABLE BAKING PLATES.
(UTILITY MODEL PATENT#: ZL200920008201.0).
Material is nodular cast iron. It is stable and durable. Still good in our factory after 10 years use.

Plates are designed and patented in a way to maximize heat absorption.





Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 7

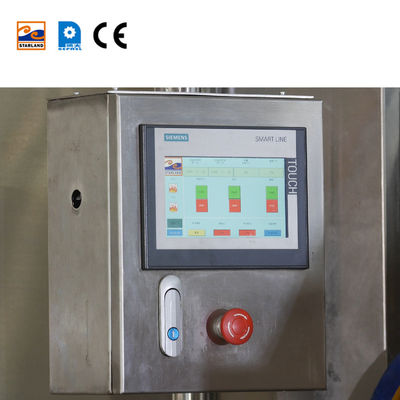

GAS SYSTEM.
Imported Gas System parts, various choice,the touch screen panel can control the fire
volume directly.





Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 8Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 9





Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 10Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 11Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 12Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 13Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 14Rolled Sugar Cone Production Line Cookies Crispy Cone Making Machine 15

♦ What kind of ice cream cone your machine can make?

Our machine can make rolled ice cream cone,bowl shape cone,egg roll,and wafer biscuit cone.

♦ What’s the voltage of your machines?

380V,other voltage can be customized.

♦ 3.How can i get quotation?

Send your requirements(cone shape,size,angle,and picture)and leave your email,we will send you quotation soon.

♦ Do you have automatic ice cream cone production line?

Yes,we have several models can be choose.

♦ Which kind of payment method you can accept?

T/T.Western Union,L/C.

After Sale Service

♥ Warranty policy one year from shipment

♥ We will send you the replacement after received the broken part

♥ Evaluate the customs rish and choose safest shipping company before shipping.

♥ Follow status up time by time until the goods arrived.
