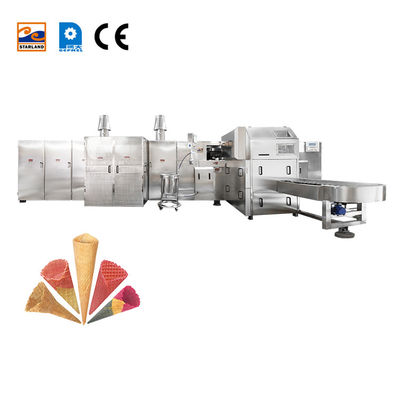

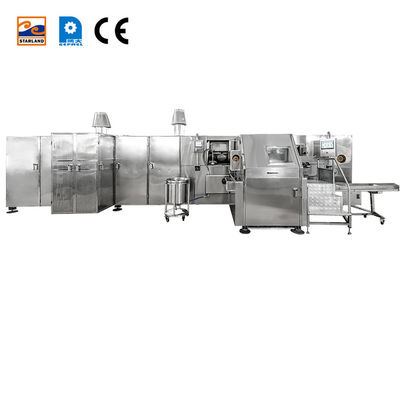

Full Automatic Waffle Cone Production Line For Making Waffle Basket Oven Type

Full Automatic Waffle Cone Production Line For Making Waffle Basket Oven Type

    • Full Automatic Waffle Cone Production Line For Making Waffle Basket Oven Type
  • Full Automatic Waffle Cone Production Line For Making Waffle Basket Oven Type

    Product Details:

    Place of Origin: Guangdong Guangzhou
    Brand Name: STARLAND
    Certification: CE
    Model Number: CBIII-39*A/CBIII-39*2A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PS
    Price: negotiation
    Packaging Details: RAW PACK
    Delivery Time: 100DAYS
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Timing Device: Without Timing Device Type: Oven
    Voltage: 380V Packing: Stainless Steel
    Capacity: 3500 PCS/Hour Machine Dimension(mm): 7000L*2400W*1800H
    Feature: High Speed Shipping Volume: 34 Cbm / 40 Ft Container
    High Light:

    ice cream maker industrial machine

    ,

    sugar cane industry process



    AUTOMATIC ROLLED SUGAR CONE MACHINE MODEL CBIV-47*A/ CBIV-47*2A



    CBI series and WBI series


    (Baking Plares Size:240mmX240mm;suitable for cones length 108mm or



    less and waffle basket)



      CBI-47A*/CBI-47X2A* CBI-71A*/CBI-71X2A* CBI-107A*/CBI-107X2A*
    Number of baking plates 47 71 107
    Standard Cones/hour** 4200 6600 9500
    Gas Consumption(kg)/hour 5-6 9-10 11-12
    Machine Dimension(mm) 6700L*2400W*1800H 9600L*2400W*1800H 13900L*2400W*1800H
    Machine Weight(kg) 4500 6500 9600
    Main Motor specification 1.5hp;1.1kw 2.0hp;1.5kw

    2.0hp;1.5kw


    The company has patented cone machine as follows:


    1, Fully Automatic Rolled Sugar Cone Machine. Patent No.2008200424013



    2. Micro Adjustable Batter Injecting Pump Patent No.2007200616790



    3. Single Auto-Roll & Press Forming Device Patent No.2008200426625



    4. Twin-Pull & Push Cone Ejecting Device Patent No.2008200431619



    5. Triple-Pull &Push Cone Ejecting Device Patent No.2008201895682



    6. Nozzle Type High Pressure Turner & Heating System Patent No.2008200434496



    7. New Designed Heat Absorber For Upper & lower Baking Plates




    Patent No.2009200082010





    CBIII series and WBIII series


    (Baking Plares Size:320mmX240mm;suitable for cones length over 125mm and waffle basket)


      CBIII-39A*/CBIII-39X2A* CBIII-55A*/CBIII-55X2A* CBIII-61A*/CBIII-61X2A*
    Number of baking plates 39 55 61
    Standard Cones/hour** 3500 5500 6000
    Gas Consumption(kg)/hour 5-6 9-10 10-11
    Machine Dimension(mm) 7000L*2400W*1800H 9500L*2400W*1800H 10500L*2400W*1800H
    Machine Weight(kg) 4700 6500 8500
    Main Motor specification 1.5hp;1.1kw 2.0hp;1.5kw 2.0hp;1.5kw


    CBIV series and WBIV series
    (Baking Plares Size:260mm*240mm;suitable for cones length between 100mm to 120mm and waffle basket)


      CBIV-45A*/CBIV-45X2A* CBIV-63A*/CBIV-63X2A* CBIV-101A*/CBIV-101X2A NEW*
    Number of baking plates 45 63 101
    Standard Cones/hour** 4000 6000 9500-10500
    Gas Consumption(kg)/hour 5-6 9-10 11-12
    Machine Dimension(mm) 6800L*2400W*1800H 9000L*2400W*1800H 14000L*2300W*2000H
    Machine Weight(kg) 4500 6500 10000
    Main Motor specification 1.5hp;1.1kw 2.0hp;1.5kw 2.0hp;1.5kw


    *Ameans one cone per baking plate while x2A means two cones per baking plate
    ** Standard cone is 23° with cone length 110mm; standard cone /hour for x2A(two cones per baking plate) only.
    Also, production output depends on the quality of cone mix, oven tempreature and thickness of wafer.

    Full Automatic Waffle Cone Production Line For Making Waffle Basket Oven Type 0Full Automatic Waffle Cone Production Line For Making Waffle Basket Oven Type 1
