waffle cone processing line for Full automatic maker ice cream

waffle cone processing line for Full automatic maker ice cream

  • waffle cone processing line  for Full automatic maker ice cream
  • waffle cone processing line  for Full automatic maker ice cream
  • waffle cone processing line  for Full automatic maker ice cream
  • waffle cone processing line  for Full automatic maker ice cream
  • waffle cone processing line  for Full automatic maker ice cream
  • waffle cone processing line  for Full automatic maker ice cream
waffle cone processing line  for Full automatic maker ice cream
Product Details:
Place of Origin: Guangdong guangzhou
Brand Name: STARLAND
Certification: CE
Model Number: CBIII-61A*/CBIII-61x2A*
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Delivery Time: 100days
Payment Terms: T/T
Contact Now
Detailed Product Description
Standard Cones/Hour: 5400-6000 Gas Consumption(kg)/hour: 10-11
Machine Dimension(mm): 10500Lx2400Wx1800H Whether Automatic: Fully Automatic
High Light:

Batter mixer Sugar Cone Production Line

,

adjusted speed Sugar Cone Production Line

,

5400 Cones/Hour ice cream wafer machine

Description

waffle cone processing line  for Full automatic maker ice cream 0
Structure:
The spare parts of machine are installed on the strong steel structures. The doors are double for heat insulation. All the panels are made with stainless steel.
Equipment performance:
This baking equipment is working continuously, automatically and rotating. The speed can be adjusted as required. The machine is driven by one motor with direct traction.

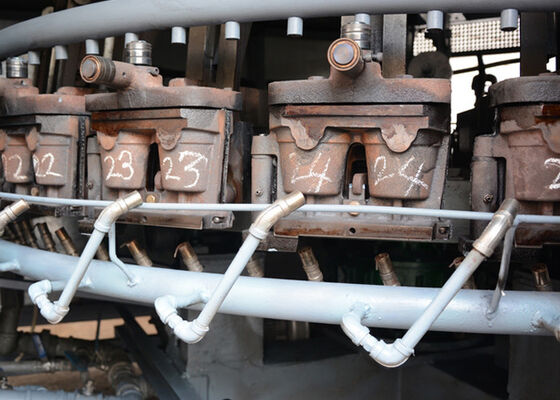

Molds:
The baking plates are made with high-qualified ductile cast iron.

Batter pump:
It pumps the batter automatically from the batter tank and sprays on the baking plates to bake. The batter quantity can be adjusted a little to make products with different sizes.

Gas system:
It is heating with gas(natural gas or liquid gas). After pressing the ignition button, the burner will be on fire automatically. The fire can be adjusted as required.
waffle cone processing line  for Full automatic maker ice cream 1waffle cone processing line  for Full automatic maker ice cream 2


waffle cone processing line  for Full automatic maker ice cream 3

Operation panel:

The baking equipment is set, adjusted and controlled by the easy-operated button or modernized PLC controller.




Optional extra parts and devices:
1. Forming molds for other changeable specifications
2. Batter mixer
3. Cooling tower/belt or chain type food conveyor(for cooling cone)
4. Food packing table/automatic counter
5. Paper sleeve filling device
6. Automatic adjuster for top position for the natural heated cone(to make the cone neatly arranged)
7. Metal detector
8. Cutting device
9. Other devices(including sealing machine, air blower, baking plates cleaner and so on)

waffle cone processing line  for Full automatic maker ice cream 4

waffle cone processing line  for Full automatic maker ice cream 5waffle cone processing line  for Full automatic maker ice cream 6
